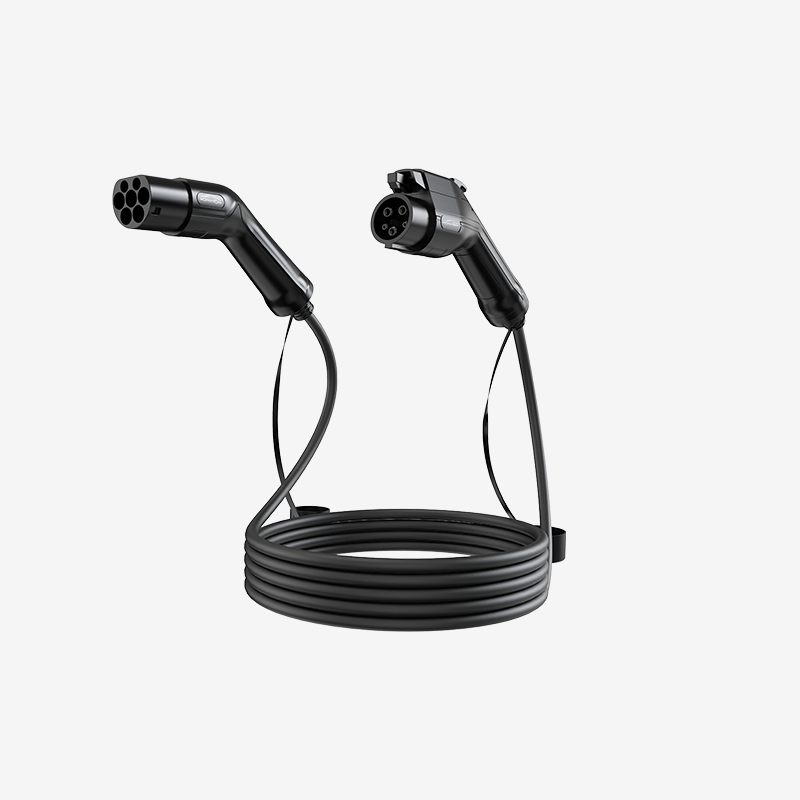

GBT EV charging Connector with cable

· Compliant with GB/T20234-2015 standards.

· Humanized design with a good grasp feel, easy to use.

· Long service life, insertion times more than 10000 times.

· Customizable cable length, logo.

· Excellent protection performance.

Introduction：

China is the biggest market – by far – for electric vehicles.

They have developed their own charging system, officially referred to by their Guobiao standards as: GB/T 20234.2 and GB/T 20234.3.

GB/T 20234.2 covers AC charging (single-phase only). The plugs and sockets look like Type 2, but the pins and receptors are reversed.

EV connector	GB/T
Rated current	single phase 16A /single phase 32A/ three phase 16A/ three phase 32A
Rated voltage	220VAC
Insulation resistance	>5MΩ
Contact impedance	0.5 mΩ Max)
Withstand voltage	2000V
Fireproof grade of rubber shell	UL94V-0
Mechanical life	>10000 unloaded plugged
Housing protection class	IP54
Plastic shell	thermoplastic plastic
Conductor	copper alloy, silver plated surface
Working environment temperature	-30℃- +50℃
Terminal temperature rise	<50K
Insertion and Extraction Force	<80N
Warranty	2 years
