Workersbee GBT AC Vehicle Inlet Socket for AC Charging

ergonomic design and comfortable grip type 2 ac ev plug

compliant with IEC 62196 standards fast charging with excellent protection perfromance.

Up to 700A output currentoil-cooled or water-cooled

With an ergonomic design, the product fits human hand and is comfortable to hold.

Naturally cooled CCS2 handle for high-throughput DC fast charging. Up to 375A at 1000V with ≤50K terminal temperature rise, IP55 housing, and 10,000+ mating cycles.

Workersbee liquid-cooled CCS2 DC connectors are available in 300A, 400A, and 500A configurations for high-power EV charging projects.

The NACS AC Charging Plug by Workersbee offers reliable home and workplace EV charging with a durable design, supporting up to 48A of AC power. It is lightweight, easy to use, and compatible with Tesla and other EVs.

The NACS DC Charging Connector by Workersbee delivers high-power fast charging up to 350A and 1000V for electric vehicles. Designed for public charging stations, it offers durability, safety, and reliable performance with silver-plated contacts and smart temperature control.

A 400A CCS2 vehicle connector designed for high-current DC charging. This naturally cooled model is suitable for public DC charging stations, commercial charging equipment, and other projects that need 400A-class output with a simpler cable system and lower integration complexity.

 SAE J1772 standards good grasp feel type 1 ev plug

SAE J1772 standards CCS1 EV DC charging plug

The EV plug's modular design is integrated seamlessly with automated oatch manufacturing technology

A CCS1 DC charging connector rated at 400A and 1000V DC for high-current fast charging applications. It is designed for charger systems that use a naturally cooled cable structure and supports temperature monitoring, outdoor protection, and project-based cable assembly customization.

terminal coating modular design cost effective gb ac ev plug

High-power GB/T 20234 DC plug for public fast chargers. 1000 V, 80–300 A natural-cooled design with silver-plated contacts, IP55 when mated, 10,000+ mating cycles, motor lock with emergency release, built for -30°C to +50°C operation.

Low resistance terminal and riveting design, economical, safe and durable

· Good conductivity from well-manufactured silver-plated pins; · Robust casing material; · An e-lock is available for charging safety; · Ranging from 80A to 200A, the DC EV socket offers different charging powers. · IP54 protection level; TUV certified.

Workersbee's Type 2 AC Outlet Socket offers seamless integration, and superior charging speeds enhancing operational efficiency for B2B customers.

Workersbee's Type 2 AC Outlet Socket conforms to the IEC 62196-2 standard and is mainly used in Europe as the standard for EV charging.

Workersbee's Type 1 AC Inlet Socket is a reliable and durable charging solution for electric vehicles. With a focus on safety and efficiency, this socket provides a convenient and secure way to charge electric vehicles in various environments.

Workersbee GBT DC Inlet Socket is designed for vehicle-side GB/T DC charging interfaces, supporting 80A to 250A rated current and 750V/1000V DC voltage. It features IP55 protection, silver-plated copper alloy terminals, and durable thermoplastic housing for vehicle-side GB/T DC inlet integration.

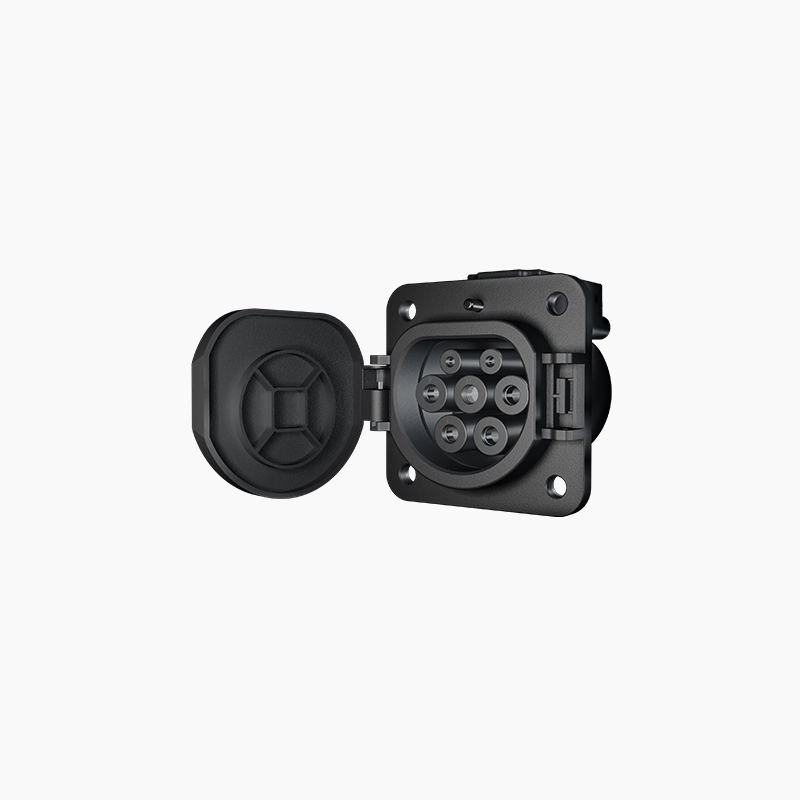

Workersbee GBT AC Vehicle Inlet Socket is designed for vehicle-side GB/T AC charging interface integration, supporting 16A and 32A current options with single-phase and three-phase configurations. It features IP55 protection, silver-plated copper alloy terminals, electronic lock support, and durable thermoplastic housing.
