At home you’ll typically use AC charging:
Level 1 (120V, North America)
Uses a standard household outlet. Slow but simple. Good for low daily mileage or overnight top-ups.
Level 2 (240V single-phase / 230V in many regions)
The mainstream choice for home: commonly 3.6–7.4 kW on single-phase; 11–22 kW where three-phase is available.
DC fast charging at home
Rare due to cost, power requirements, and noise/space. Most homeowners don’t install DC fast chargers.
The OBC bottleneck
Your EV’s on-board charger (OBC) caps the AC charging rate. If the car’s OBC is 7.4 kW, a 22 kW wallbox won’t make AC charging faster.
|
Level |
Typical Power (kW) |
Add-Range (mi/h)* |
Pros |
Cons |
Best For |
|
Level 1 (120V) |
1.2–1.9 |
~3–5 |
Cheapest to start; use any outlet (properly rated) |
Slow; can stress old outlets |
Light daily driving, renters |
|
Level 2 (single-phase) |
3.6–7.4 |
~15–30 |
Fast overnight; broad compatibility |
Requires dedicated circuit/installer |
Most households |
|
Level 2 (three-phase) |
11–22 |
~35–60 |
Very fast AC at home (if supported) |
Needs three-phase supply; car OBC may limit |
High daily mileage, EU homes |
*Rule-of-thumb conversions for planning only; real results vary by vehicle efficiency and conditions.
Head terms: EV charging time at home, how long to charge an EV at home, Level 2 charging time, 7.4 kW charging time

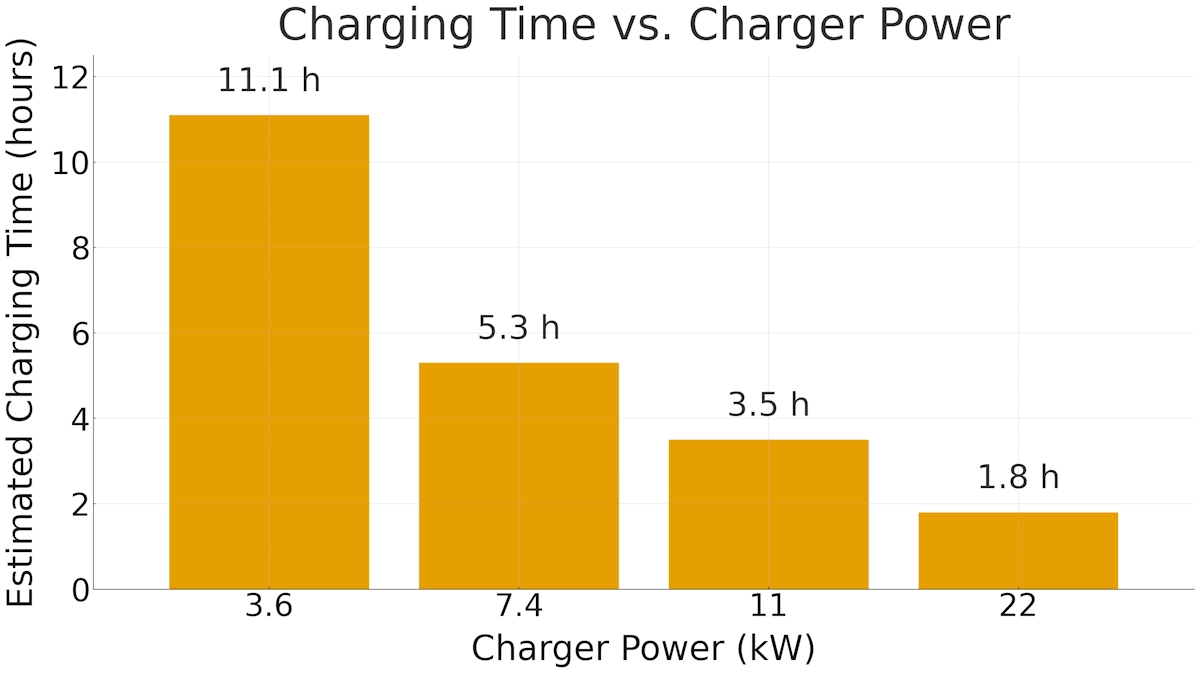

Simple formula:
Time (hours) ≈ (Energy to add in kWh) ÷ (Effective power in kW)
Where:
Energy to add (kWh) = Battery capacity × (Target SOC − Start SOC)
Effective power (kW) = min(charger power, OBC limit) × efficiency factor (≈0.9)
Assumptions: efficiency 90%; OBC ≥ charger power.
|
Battery (kWh) |
From 20% to 80% |
3.6 kW |
7.4 kW |
11 kW |
22 kW |
|
40 |
24 kWh |
~7.4 h |
~3.6 h |
~2.4 h |
~1.2 h |
|
60 |
36 kWh |
~11.1 h |
~5.3 h |
~3.5 h |
~1.8 h |
|
80 |
48 kWh |
~14.8 h |
~7.0 h |
~4.7 h |
~2.4 h |
|
100 |
60 kWh |
~18.5 h |
~8.8 h |
~5.9 h |
~3.0 h |
Reality check: Cold weather can slow charging; many EVs taper near full. Most owners target ~80% for daily use.
Head terms: cost to charge EV at home, home EV charging cost calculator, EV charging cost per kWh, off-peak EV charging, TOU EV tariff
|
Item |
Low |
Typical |
High |
Notes |
|
Level 2 hardware |
— |
— |
— |
Price varies by features (tethered cable, display, app) |
|
Mounting & accessories |
— |
— |
— |
Pedestal, bracket, weather protection |
|
Electrical materials |
— |
— |
— |
Cable/conduit, breaker, GFCI/RCD where required |
|
Panel upgrade (if needed) |
— |
— |
— |
Only if existing capacity is insufficient |
|
Permit/inspection |
— |
— |
— |
Municipality-dependent |
|
Labor (licensed electrician) |
— |
— |
— |
Influenced by run length and complexity |
(Insert local currency figures once you scope your market.)
Head terms: home EV charger installation, EV charger permit, panel upgrade for EV charger, 240V EV charging, NEMA 14-50 (NA), single-phase vs three-phase (EU/UK)
A safe, compliant install protects your panel, property, and warranty. Plan with a licensed electrician and match your plug standard (e.g., J1772/Type 1 in North America, Type 2 in much of Europe; NACS is emerging in NA).
|
Step |
Owner / Installer |
Status |
Notes |
|
Load calculation & panel capacity |
Electrician |
☐ |
Main breaker rating, spare capacity |
|
Select location & cable routing |
Owner + Electrician |
☐ |
Garage/driveway; weather exposure |
|
Choose circuit & protection |
Electrician |
☐ |
Breaker size, GFCI/RCD, wire gauge |
|
Permit application (if required) |
Owner/Electrician |
☐ |
Municipality rules |
|
Install & commission |
Electrician |
☐ |
Test under load; label circuit |
|
Final inspection & handover |
Authority/Electrician |
☐ |
Keep docs & photos |
Connector choices: J1772 (Type 1), Type 2, CCS1/CCS2 cables, and NACS adapters/cables—match the car and region.
Head terms: smart EV charging, scheduled EV charging, load balancing EV charger, off-peak EV charging, night rate EV charging
Time-of-Use (TOU) / Night rates: Shift charging to cheaper off-peak windows.
Scheduler: Set start/stop times or departure time to pre-condition and finish near departure.
Load balancing: Coordinate with big appliances (HVAC, oven, dryer) to avoid nuisance trips.
Solar matching (optional): If you have PV, align charging with surplus generation.
Small settings, big wins: For many households, simply avoiding 4–9 pm and charging overnight yields most of the savings.
Head terms: EV charging in apartment, condo EV charging, no driveway EV charging, curbside EV charging, shared garage EV charging
Workplace / community chargers: Leverage daytime parking.
Condo/HOA retrofits: Metering and billing policies can enable assigned-spot charging.
Shared garages: Portable Level 2 on a dedicated, compliant outlet can bridge the gap (follow building rules).
Curbside / municipal: Check local programs near multi-unit dwellings.
Safety first: Don’t run cables across sidewalks. Use approved routes and enclosures.
Head terms: best SOC for daily charging, charge to 80 percent, EV charging safety at home, outdoor EV charger IP rating
Everyday target: Many owners set ~70–80% for daily driving.
Trip days: Charge to 100% right before you leave.
Avoid deep cycles when possible; keep the pack temperate.
Outdoor gear: Look for appropriate IP/weather ratings and strain relief on cables.
When in doubt: Consult your vehicle manual and a qualified electrician.
Head terms: EV charging with solar, solar EV charger, home battery and EV, V2H/V2G home charging
PV + EV: Maximize self-consumption by timing charging with mid-day solar (or schedule at night if tariffs are cheaper).
Home batteries: Buffer solar for evening charging; weigh cost vs. tariff savings.
V2H/V2G: Emerging options that require compatible vehicles, bi-directional hardware, and utility approval.
How long does home EV charging take?
Use Battery kWh × (Target − Start) ÷ Effective kW.
Is a 7.4 kW home charger enough?
For most households, yes—especially with overnight charging. Your car’s OBC may cap AC speed anyway.
Can I use a regular outlet?
Level 1 (120V) works for light daily use. Ensure the outlet and circuit are in good condition and appropriately protected.
Do I need a permit?
Often required for new circuits or panel work. Check local rules and use a licensed electrician.
J1772 vs Type 2 vs NACS—what do I need?
Match your region and vehicle inlet. Many North American cars use J1772 for AC (NACS emerging); much of Europe uses Type 2.
What’s the cheapest time to charge?
Usually overnight off-peak hours on TOU plans. Use scheduling to automate.
