CCS1 connector selection

The right fit for a naturally cooled CCS1 connector depends on the operating conditions behind the project. As charging gets busier, output stays high for longer, or site heat becomes harder to manage, the cooling decision becomes less straightforward. That is why a naturally cooled CCS1 connector is not the right fit for every fast charging project. For project teams, the real question is whether the expected duty profile still supports a naturally cooled design, or whether the application is starting to move beyond that range.     Look at the Project First Before deciding whether natural cooling is still the right fit, the project team needs to look at how the site is expected to operate in daily use. Charging intensity, peak duration, site heat, and service expectations all shape the real load on the connector. These factors tell far more than a product label can.   A site with controlled charging demand and manageable thermal pressure may still suit a naturally cooled CCS1 connector well. The picture changes when charging windows stay busy for longer, high-output sessions repeat more often, or the site leaves less thermal margin in real operation. At that point, the cooling decision becomes less about connector category and more about how the application actually performs in the field.   For teams that need a broader starting point before narrowing the cooling path, our CCS1 connector selection guide for North American DC fast charging projects looks at the wider selection logic behind current class, operating conditions, and project fit.     When Natural Cooling Still Fits Well Natural cooling usually remains the right fit when project demand stays controlled and the site does not keep the connector under constant thermal pressure. This often applies to charging applications where activity is steady but still manageable, peak periods are real but not continuous, and the site is not expected to sustain high-output sessions for long stretches throughout the day.   It can also be the right choice when the project values a simpler connector path. In practical terms, that means keeping cable-side complexity under control while still meeting the needs of the charging system. For project teams, this affects specification planning, installation, field service, and long-term maintenance.   The same logic applies to projects with demanding but predictable operating profiles. A naturally cooled CCS1 connector can still be a practical fit when the expected load is clear, thermal pressure remains manageable, and the application does not rely on repeated long high-stress charging windows. In that kind of deployment, natural cooling is not a fallback. It is often the better fit for the way the site is expected to operate.     When Natural Cooling Starts to Lose Its Advantage Natural cooling becomes harder to justify when high-output charging stops being occasional and starts becoming routine. If the site is expected to handle repeated busy periods, longer high-power sessions, or short gaps between sessions, the connector is no longer working under a light or moderate duty pattern. At that point, the issue is not just what the rated output looks like on paper, but how much thermal pressure builds up in real operation.   The fit can also change when site conditions leave less room for heat to dissipate. Higher ambient temperatures, heavier daytime usage, and less thermal margin across the charging window can all make a naturally cooled path more difficult to support consistently. A setup that looks acceptable in a lighter-use scenario may become harder to manage once those factors begin to overlap.   For project teams, these are usually the signs that the connector decision needs another round of review. If the site is moving toward repeated high-stress charging periods, natural cooling may no longer be the most comfortable fit. The better way to judge the application is by its real duty pattern, not by a single nominal figure.     What to Check Before Finalizing the Specification Before locking the specification, the project team needs to verify whether natural cooling still matches the site’s expected operating conditions. At this stage, the decision should be based on real duty profile, not general preference.   The first thing to check is the expected charging pattern at the site. A connector that performs well under controlled daily demand may face a very different burden when the charging window becomes busier, sessions run longer, or recovery time between sessions starts to shrink. This is where the real duty profile matters more than a nominal output figure.   The second is site thermal exposure. Ambient temperature, daytime operating load, enclosure conditions, and overall thermal margin all affect how comfortably a naturally cooled path can perform. If heat becomes harder to dissipate across normal site operation, the connector decision should not be based on rating alone.   The third is service expectation over time. Some projects can accept a narrower operating window as long as installation stays simpler and maintenance remains manageable. Others place more weight on sustained output consistency across heavier usage periods. That difference changes how project teams should evaluate connector fit before finalizing the path.       A Practical Check Before Finalizing the Connector Path This side-by-side check helps project teams assess the application as a whole. The point is not to judge natural cooling by a single condition, but to see how charging pattern, thermal exposure, and service expectations combine in actual site operation. Project condition What it usually suggests Charging demand is steady but manageable Natural cooling may still be a practical fit Peak periods are present but not continuous The connector is less likely to stay under constant thermal pressure High-output sessions appear repeatedly across the day The project may need a closer review of thermal margin Recovery time between sessions is short Sustained operating stress becomes more important Ambient conditions are hotter and site heat is harder to manage Natural cooling may become harder to support consistently Installation and long-term service simplicity matter strongly A naturally cooled path may still offer a clearer advantage     What matters is the overall pattern. If most conditions remain on the controlled side, natural cooling may still be a sound fit. If several conditions point toward heavier and more sustained stress, the connector path should be reviewed more carefully before the specification is finalized.     Choose for the Site, Not for the Highest Spec In CCS1 fast charging projects, the better decision is not to assume that a more complex cooling path is always the safer choice. What matters more is whether the connector path still matches the way the site is expected to operate. When charging demand stays controlled, thermal pressure remains manageable, and service needs stay practical, a naturally cooled design can still be the right fit.   The decision becomes harder when the project begins to place more sustained stress on the connector path. That is why project teams need to look beyond nominal figures and judge the application by its full operating profile. Duty profile, site heat, recovery time, and long-term service expectations all shape whether natural cooling still makes sense in practice.   For projects that remain within a controlled operating range, a naturally cooled CCS1 connector can still be specified with confidence. In those cases, the priority is not to chase a more aggressive cooling path, but to choose a connector solution that matches the site’s actual operating demands. For teams evaluating that fit, Workersbee naturally cooled CCS1 connector solutions can be a relevant option for projects that value stable performance, manageable integration, and long-term practicality.

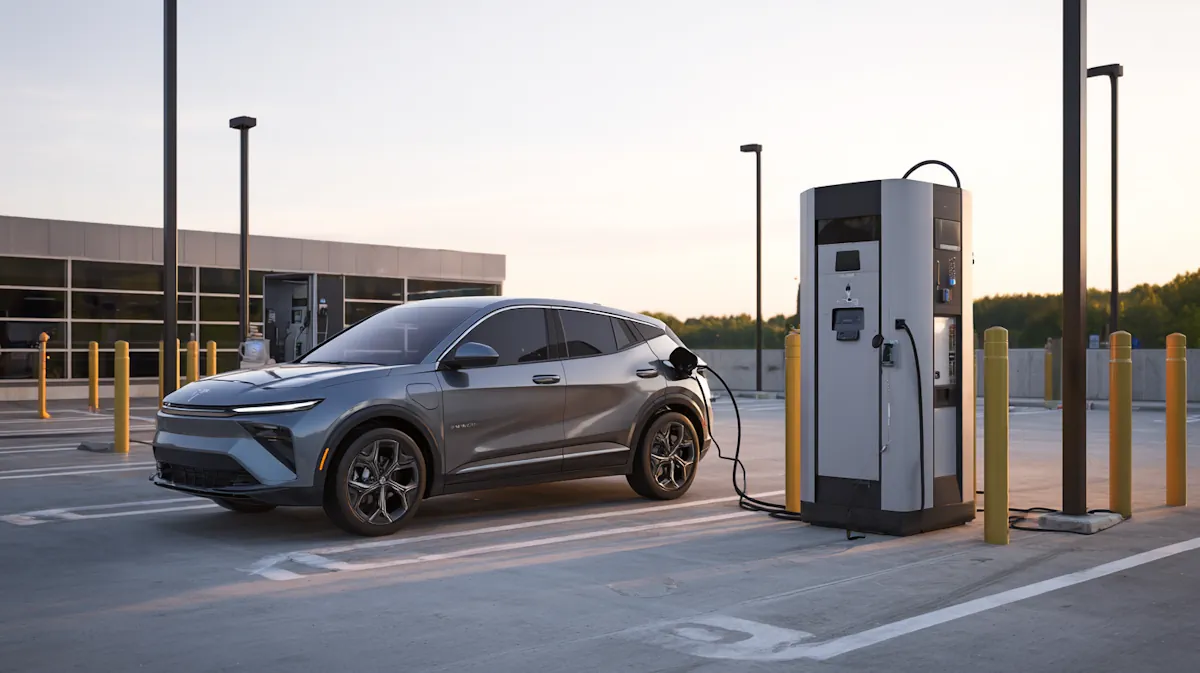

CCS1 still matters in North American DC fast charging projects. J3400 is expanding, but many sites still need to make practical CCS1 decisions for chargers being specified and deployed now. That keeps CCS1 selection part of active project work instead of treating it only as a legacy compatibility issue.   A useful CCS1 selection process starts with project conditions. The task is to decide whether a connector fits the application, thermal and cooling requirements, operating conditions, and integration requirements well enough to support reliable rollout and field performance. When those conditions are reviewed early, later decisions on connector class become much easier.     Why CCS1 Selection Still Matters in Current DC Charging Projects A CCS1 connector decision affects more than the charging interface. It also shapes cable design, thermal behavior, assembly complexity, and what has to be confirmed before a charger is ready for rollout. Once those choices are built into the system, they are harder to change without slowing the project or reopening integration work. That is why connector selection belongs early in the design process, while adjustment is still possible.   Reliable CCS charging also depends on more than nominal compliance. Conformance, robustness, interoperability, and stable charging behavior across equipment from different manufacturers all affect how well a charging system performs after deployment. In practice, that means CCS1 selection should be reviewed while cooling path, operating environment, integration details, and validation scope can still be assessed together. If those checks are left too late, the connector may still look correct on paper but create avoidable friction during commissioning or field use.     What Should Drive CCS1 Connector Selection A CCS1 connector should be selected in steps, not by model or rating first. The clearest approach is to start with the project’s real charging scenario, then move outward to thermal and cooling requirements, operating conditions, and integration fit.   Start with the charging scenario. Define how the charger is expected to work after deployment: what kind of site it serves, how long a typical charging session lasts, how often the charger is used, and how hard the hardware is expected to run over repeated use. A connector that seems acceptable in a light or controlled scenario may become the wrong fit in a harder-working application.   Then review thermal and cooling requirements. In DC fast charging, connector selection cannot be separated from temperature rise, cooling path, sensor setup, and the charger’s control strategy. If thermal demands are not clear early, the project usually pays for it later through tighter operating margin, slower commissioning, or weaker charging stability in the field.   Check operating conditions before locking the choice. Outdoor exposure, ambient temperature range, handling frequency, and service conditions all change what the connector needs to deliver in real deployment. A connector that works in a controlled setting may face very different demands in a public fast charging site with repeated daily use. Those differences affect wear, protection expectations, and the amount of room the project has for error.   Confirm integration fit and validation readiness. Cable structure, routing, sensor choice, assembly details, and commissioning workflow all affect whether the connector moves smoothly from specification into build. A connector should also leave room for conformance and interoperability checks before rollout, not after procurement has already narrowed the design path.   If this order is clear, later decisions on connector class, cooling route, and shortlist fit become easier to defend.     How Current Class Changes the Decision Current class should come out of project requirements, not lead the discussion from the start. Once the charging scenario, thermal and cooling requirements, operating conditions, and integration path are clear, the project team can make a more useful judgment about connector class. That is a more reliable approach than treating the highest available rating as the safest choice. In DC fast charging, a higher current class can increase capability, but it also raises the demands placed on thermal control, cable design, and commissioning discipline.   Lower current classes can make sense when the charging profile is more controlled and the project does not need a harder-working fast-charging configuration. In those cases, selection pressure usually sits less on thermal headroom and more on environmental fit, durability, and smooth integration into the charger design. The connector still has to match deployment conditions, but the project may not need to move upward if the site behavior does not justify it.   The decision becomes more sensitive as the project moves into a higher current class. Repeated load, temperature rise, sensor path, cable-side complexity, and overall operating margin all begin to matter more. At that point, connector selection becomes less forgiving. A class that looks acceptable in a current-only or datasheet-level comparison may still require closer review once the charger is expected to run harder, cycle more often, or operate with tighter thermal headroom.   High-current review should therefore be treated as a project checkpoint, not just a larger-number option. The team should confirm not only that the connector class is available, but that the charger design, cooling path, operating environment, and validation plan can support it with enough margin for stable rollout and field use.     When a Naturally Cooled CCS1 Connector Makes Sense A naturally cooled CCS1 connector makes sense when the project needs solid DC charging performance without adding more cooling-system complexity than the application actually requires. In many cases, the goal is not to push the charger toward the highest possible output at any cost. The goal is to support the right charging behavior with a system that is easier to build, validate, and maintain.   That usually becomes a realistic option when the site profile is demanding but still controlled. The charger may need to support demanding DC fast charging, but not a duty cycle that continuously pushes thermal limits. In that range, a naturally cooled architecture can reduce cable-side complexity and narrow the number of variables that must be managed during assembly and commissioning.   It also tends to make more sense when the project team wants a cleaner build path. A simpler cable-side design can reduce integration burden and lower dependence on additional cooling-related subsystems.   Once a project begins to run under heavier repeated throughput, tighter thermal headroom, or more demanding site conditions, the cooling path deserves closer review. A naturally cooled connector may still be the right answer, but only if the charger design and operating pattern leave enough margin for stable field use.   Project condition Naturally cooled fit When to review a higher cooling requirement What to confirm Controlled DC fast charging profile Strong fit Review only if site demand is expected to rise materially Duty cycle, thermal margin Simpler cable-side architecture is a project priority Strong fit Review if added cooling complexity is acceptable Cable routing, system complexity Outdoor site with manageable daily throughput Good fit Review if operating stress rises over time Ambient conditions, handling frequency Repeated heavy use with tighter thermal headroom Needs closer review Stronger reason to assess Sensor path, operating margin Higher service pressure and lower tolerance for instability Depends on margin Stronger reason to assess Validation plan, service model     What to Verify Before Locking the Connector Specification Before a CCS1 connector moves into procurement, the project should confirm more than basic compatibility.   The first checkpoint is the real charging profile. Rated current only describes part of the picture. Session length, frequency of use, repeated heavy-load behavior, and expected operating window all shape whether the connector class actually fits the application.   The second checkpoint is the thermal path. The connector, the temperature-monitoring setup, and the charger-side control logic should already be moving in the same direction before the design is locked. If those pieces are still loosely defined, the result is usually a narrower operating margin and more uncertainty during commissioning.   The third checkpoint is the operating envelope. Outdoor exposure, ambient temperature, handling frequency, and service conditions all affect what the connector needs to withstand once the charger is live. A design that looks sufficient in a controlled review may behave very differently at a site with repeated public use and less room for error.   The fourth checkpoint is assembly fit. Cable routing, sensor configuration, connection details, and sealing choices can look secondary during early review, but they often become the source of late project friction. The closer the charger gets to build, the more expensive those adjustments become.   The fifth checkpoint is deployment readiness. A connector that appears correct on paper still has to perform correctly inside the charger system. If key questions around integration, validation, or operating margin are still open, it is usually better to pause the selection than to move into procurement and solve those issues later.     Why Thermal Monitoring and Interoperability Should Be Checked Early Thermal monitoring belongs in the selection stage because it affects more than fault protection. In DC fast charging, it also shapes how confidently the system can stay inside a workable operating range under repeated use. If temperature feedback is treated as a late detail, the project may discover too late that the connector, control path, and charging behavior were never fully aligned.   The same logic applies to interoperability. A connector can meet component-level requirements and still create trouble once it is integrated into a live charger. Reliable CCS charging depends on more than nominal compliance. Current industry guidance continues to treat conformance, robustness, interoperability, and stable charging behavior across equipment from different manufacturers as essential conditions for successful deployment.   These checks are most useful while the design still has room to adjust. If they are delayed until the charger is already deep into procurement or build, the project may end up absorbing avoidable rework, slower commissioning, or weaker field stability than expected.     A Practical Way to Shortlist a CCS1 Connector A CCS1 connector is worth shortlisting when the project can answer four questions with reasonable confidence. Does the connector class fit the real charging scenario? Does the cooling path leave enough thermal margin for the way the charger will actually run? Do the operating conditions match the connector’s expected field use? And are the integration and validation requirements clear enough to support a smooth rollout?   If those answers are mostly clear, the connector is usually in a good position to move forward. If the project still has major uncertainty around thermal behavior, cable-side design, operating environment, or system validation, the better move is to keep the review open rather than narrow the selection too early.   That is especially true once the project moves into a more demanding current class. At that point, selection becomes less tolerant of loose assumptions. Confirm project fit first, then confirm connector class, and only then move into procurement. That sequence usually reduces friction later in commissioning and field use.   A strong CCS1 selection process does not start by chasing the biggest number in the range. It starts by defining the job the connector needs to do, the conditions it needs to survive, and the charger system it has to work inside. Once those points are clear, the shortlist becomes easier to defend.   If your project is moving from early connector screening into technical review, the next step is usually to compare connector class, cooling approach, operating conditions, and integration fit against the charger’s real requirements. You can review Workersbee’s CCS1 DC Charging Connector page for a product reference point.
