CCS2 EV Connector Guide: Structure, Power, and Compatibility

CCS2, also known as Combo 2, is one of the main connector standards for DC fast charging in Europe and many Type 2 markets. For charging station manufacturers, CPOs, fleet operators, distributors, and EV component buyers, understanding CCS2 is not only about recognizing the plug shape. It is about knowing how connector structure, pin layout, AC/DC charging paths, power ratings, cooling methods, compatibility limits, and long-term reliability affect real charging projects.



For public charging sites, fleet depots, and high-power charging systems, CCS2 connector selection depends on more than rated current. Market fit, vehicle compatibility, thermal design, cable handling, locking reliability, certification, and maintenance planning all influence whether a connector or cable assembly is suitable for the project.





What Is a CCS2 Connector?

A CCS2 connector is built around a Type 2 AC interface with two additional DC power contacts below it. The upper section provides the Type 2 charging interface, while the lower section adds DC+ and DC- contacts for DC fast charging.



This combined structure allows a CCS2 vehicle inlet to support Type 2 AC charging and CCS2 DC fast charging when the vehicle and charging system are designed for both modes. The same physical inlet can therefore serve different charging scenarios, from AC destination charging to DC fast charging at public charging sites or fleet depots.



CCS2 is widely used in European DC fast-charging infrastructure and in many markets that follow Type 2-based charging standards. Its physical interface is associated with IEC 62196-2 for the Type 2 AC section and IEC 62196-3 for the DC charging section.

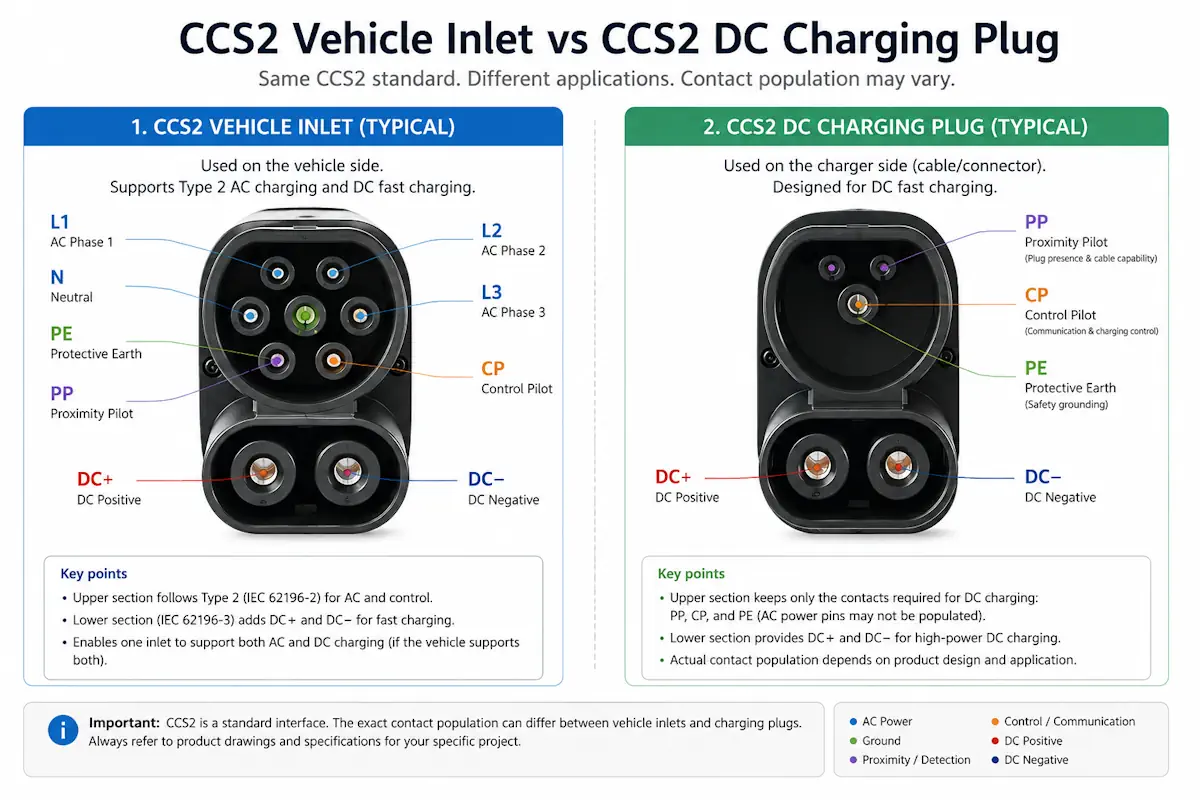

CCS2 Connector Structure and Pin Layout

The CCS2 connector has two main physical sections. The upper section follows the Type 2 layout and includes contacts used for AC charging, grounding, and control signaling. The lower section contains the two larger DC contacts used for fast charging. This layout separates power delivery from control and safety functions while allowing one vehicle inlet to support different charging modes.



The exact contact population can differ between a full CCS2 vehicle inlet and a CCS2 DC charging plug. In DC fast-charging plugs, AC power contacts may not be populated because high-power DC delivery uses the lower DC+ and DC- contacts.





Pin layout is only one part of connector selection. Mechanical stability, contact quality, locking feedback, cable strain relief, and sealing performance also affect charging reliability, especially at public fast-charging sites with frequent plug-in cycles.





How CCS2 Supports AC and DC Charging

A CCS2 inlet can support AC charging and DC fast charging through separate power paths within the same combined interface. In AC charging, a Type 2 plug uses the upper section of the inlet. This is common for home charging, workplace charging, destination charging, and other long-dwell parking scenarios.



In DC fast charging, a CCS2 plug delivers high-power energy through the lower DC+ and DC- contacts. DC power is not delivered through the AC phase contacts. The upper section still supports control, proximity, grounding, and safety functions that help confirm connection status, cable capability, and charging readiness.



Physical fit should not be treated as full charging compatibility. A CCS2 inlet may accept both Type 2 AC and CCS2 DC plugs, but the vehicle and charger must support the corresponding charging mode, communication process, and safety logic.





Where CCS2 Is Used

CCS2 is the main DC fast-charging connector standard in Europe and is widely used in many markets that follow Type 2-based charging infrastructure. It is also common in parts of Oceania, the Middle East, Africa, and export-oriented charging projects where European charging standards are adopted.



This regional fit matters for charging station manufacturers, distributors, and infrastructure operators. A CCS2 connector may be the right choice for a European highway charging hub, a Middle East public DC charging project, or a fleet depot using vehicles with CCS2 inlets. But it should not be treated as a universal connector for every market.



North America has historically used CCS1 for DC fast charging, while SAE J3400 / NACS is now an important connector path in that market. For global projects, connector selection should follow the target market, vehicle parc, local regulations, certification requirements, and the charging standards used by the vehicles that will actually visit the site.





CCS2 Power Rating: Voltage, Current, and Real Charging Power

CCS2 charging power is determined by voltage and current, but the rated number on a connector or charger does not mean every charging session will deliver that power. In simple terms, electrical power is calculated as voltage multiplied by current. For example, a 1000 V and 500 A system represents a theoretical 500 kW electrical ceiling.



In real charging projects, delivered power is usually lower than the theoretical maximum. It depends on the vehicle battery voltage, battery state of charge, charger cabinet output, cable current rating, ambient temperature, and the limits defined by the charging system. A vehicle may accept high power only during part of the charging curve, then reduce current as the battery approaches a higher state of charge.



Among these limits, heat is usually the most important one in high-current CCS2 applications. Contact resistance, cable design, cooling method, and plug-in frequency all affect temperature rise at the connector and cable. If the system approaches its thermal limit, the charger may reduce current to protect the connector, cable, and vehicle inlet. CCS2 selection should therefore reflect the real duty cycle and thermal margin, not only the highest advertised power rating.





Air-Cooled vs Liquid-Cooled CCS2 Connectors

Not every CCS2 fast-charging project needs a liquid-cooled connector. The choice should follow the required current level, duty cycle, ambient temperature, charging window, and maintenance capability.

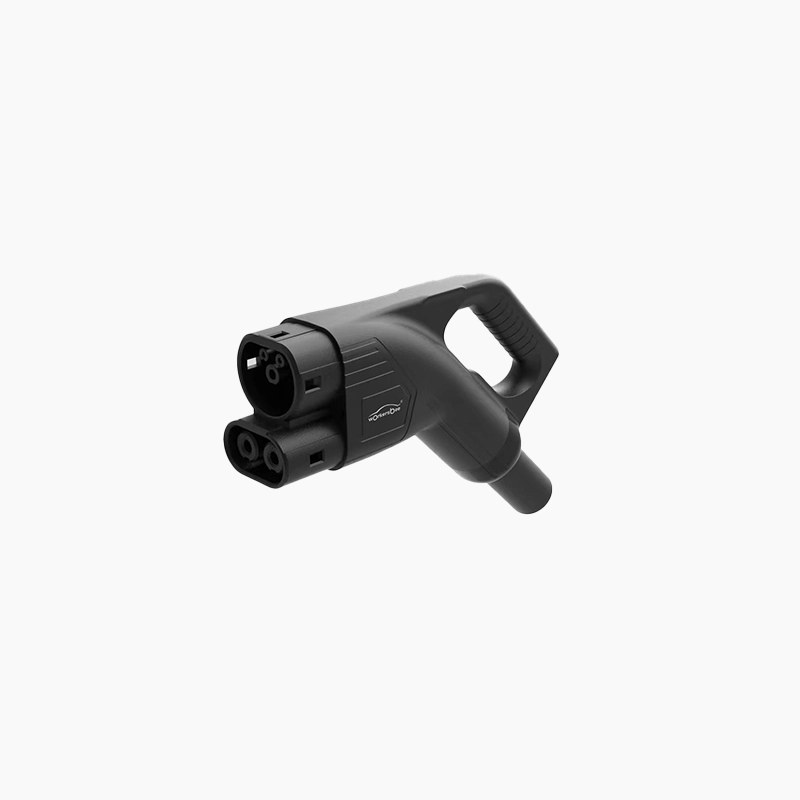

Air-cooled CCS2 connectors are a practical choice for mid-power DC charging, moderate utilization, longer dwell-time parking, and cost-sensitive sites. They are simpler to install and maintain because they do not require coolant circulation, pumps, hoses, or extra cooling-system monitoring. For urban public chargers, retail parking, workplace charging, and some depot projects, air-cooled CCS2 can provide enough performance with lower system complexity.

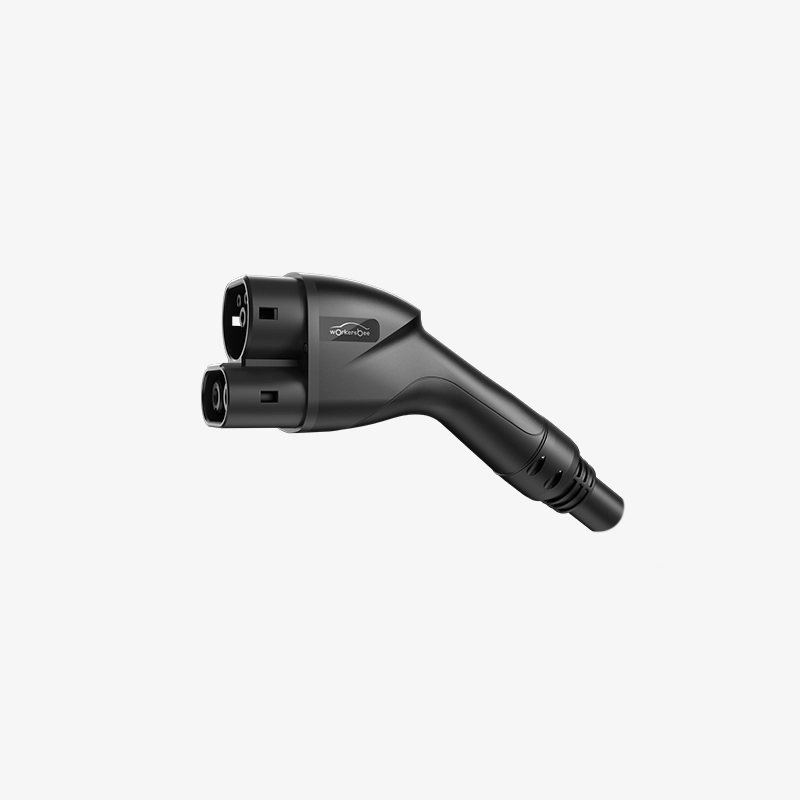

Liquid-cooled CCS2 connectors are better suited to sustained high-current charging. Typical applications include highway fast-charging hubs, high-utilization public DC sites, fleet depots with short charging windows, hot-climate installations, and projects where derating or high handle temperature would affect uptime and user experience. Liquid cooling improves thermal control under heavier loads, but it also adds cost, system complexity, and maintenance requirements.



The decision is not “air-cooled versus better.” It is whether the site needs sustained high current under real operating conditions. If the project has frequent sessions, short dwell time, high-power vehicles, or high ambient temperature, liquid cooling may be justified. If utilization is moderate and cost control matters, air-cooled CCS2 may be the better fit.





CCS2 Connector Options for Different Charging Needs





CCS2 Connector Selection Checklist for Charging Projects

A CCS2 connector should be selected around the project, not only around the highest current rating. The checklist below helps buyers connect product specifications with real charging conditions, market requirements, and long-term operation.





A CCS2 connector that looks suitable on a datasheet can still fail in the field if the duty cycle, thermal margin, cable handling, or maintenance plan is wrong. Selection should reflect the real charging environment, not only peak current, connector shape, or a standard part number.





CCS2 vs Type 2: What Is the Difference?

Type 2 and CCS2 are closely related, but they are not the same connector. The main difference is that Type 2 is an AC charging interface, while CCS2 adds a DC fast-charging path below the Type 2 section.





The key point for buyers is compatibility. A similar connector shape does not mean the same charging capability. A Type 2-only vehicle cannot use CCS2 DC fast charging unless the vehicle has the required DC charging hardware, communication support, and safety system.







CCS1 vs CCS2: Regional and Design Differences

CCS1 and CCS2 are both Combined Charging System connectors, but they are built on different AC connector bases. CCS1 uses the Type 1 / J1772 upper section, while CCS2 uses the Type 2 upper section. Both add two lower DC contacts for DC fast charging.





For global charger manufacturers, distributors, and charging operators, the choice between CCS1 and CCS2 should follow the destination market and vehicle population. A connector that fits one region’s infrastructure may not match another region’s vehicles, certification requirements, or charging standard expectations.





CCS2 Compatibility Checks Before Selection

CCS2 compatibility is not only a question of connector shape. In a charging project, compatibility should be checked across the vehicle, charger, connector, cable assembly, control logic, and certification requirements. A connector may physically match the inlet but still fail to support the required charging mode, locking logic, or safety process.



Before selecting a CCS2 connector or cable assembly, buyers should confirm these points:



The safest approach is to define compatibility by use case, not by connector name. A public DC charger, a fleet depot charger, an AC destination charger, and an adapter-based charging scenario may all involve Type 2 or CCS2 terminology, but their technical requirements are different. Buyers should provide the target market, vehicle model or inlet type, charger output, expected current, cable length, cooling requirement, and certification needs before finalizing the connector choice.



This prevents a common project mistake: selecting a connector that matches the visible interface but does not match the charging mode, thermal load, control logic, or compliance path required in the field.





Reliability and Maintenance Checks for CCS2 Connectors

For public charging sites and fleet depots, CCS2 connector reliability is not only about passing initial tests. The connector is handled every day, exposed to outdoor conditions, and repeatedly used under electrical and mechanical stress. Over time, small changes in contact condition, locking feedback, cable strain, or sealing performance can lead to failed sessions, derating, user complaints, or earlier replacement.



Operators should pay attention to these signals during routine inspection:



Maintenance planning should match site utilization. A low-use DC charger may only need periodic visual inspection and cleaning, while a high-traffic highway charger or depot system should track failed sessions, derating records, connector temperature, and replacement cycles. The goal is not only to buy a connector with the right rating, but to keep it stable under the site’s real operating load.





FAQ

What is a CCS2 connector?

A CCS2 connector, also known as Combo 2, is an EV charging connector that combines a Type 2 AC interface with two additional DC contacts for fast charging. It is widely used in Europe and many Type 2-based markets for public DC charging, fleet charging, and high-power charging projects.



Is CCS2 the same as Type 2?

No. Type 2 is mainly an AC charging interface. CCS2 uses the Type 2 upper section and adds two lower DC contacts for DC fast charging. A CCS2 inlet can usually accept a Type 2 AC plug, but a Type 2-only inlet cannot support CCS2 DC fast charging.



What is the CCS2 connector pin layout?

A full CCS2 vehicle inlet includes the Type 2 AC contact area, protective earth, control pilot, proximity pilot, and two lower DC contacts. In CCS2 DC charging plugs, the AC power contacts may not always be populated because high-power DC charging uses DC+ and DC- for power delivery.



Can a CCS2 inlet support both AC and DC charging?

Yes, if the vehicle and charging system are designed for both modes. AC charging uses the Type 2 section of the inlet, while DC fast charging uses the lower DC contacts. Physical fit alone is not enough; the vehicle must support the required charging mode, communication process, and safety logic.



Do all CCS2 chargers need liquid-cooled connectors?

No. Air-cooled CCS2 connectors can be suitable for mid-power DC charging, moderate utilization, longer dwell-time parking, and cost-sensitive sites. Liquid-cooled CCS2 connectors are more suitable for sustained high current, high-utilization sites, hot climates, and projects where derating or handle temperature is a concern.



What should buyers check before choosing a CCS2 connector?

Buyers should confirm target market, vehicle compatibility, charger output, voltage and current rating, cooling method, cable length, locking design, IP protection, certification, and maintenance plan. Supplier support, documentation, spare parts, and delivery stability also matter in B2B projects.
