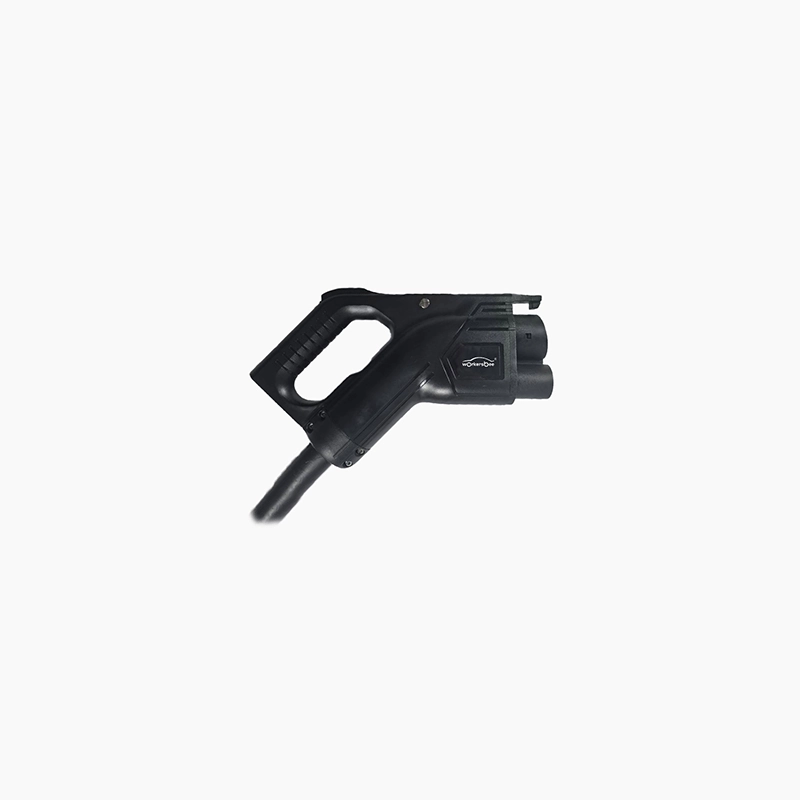

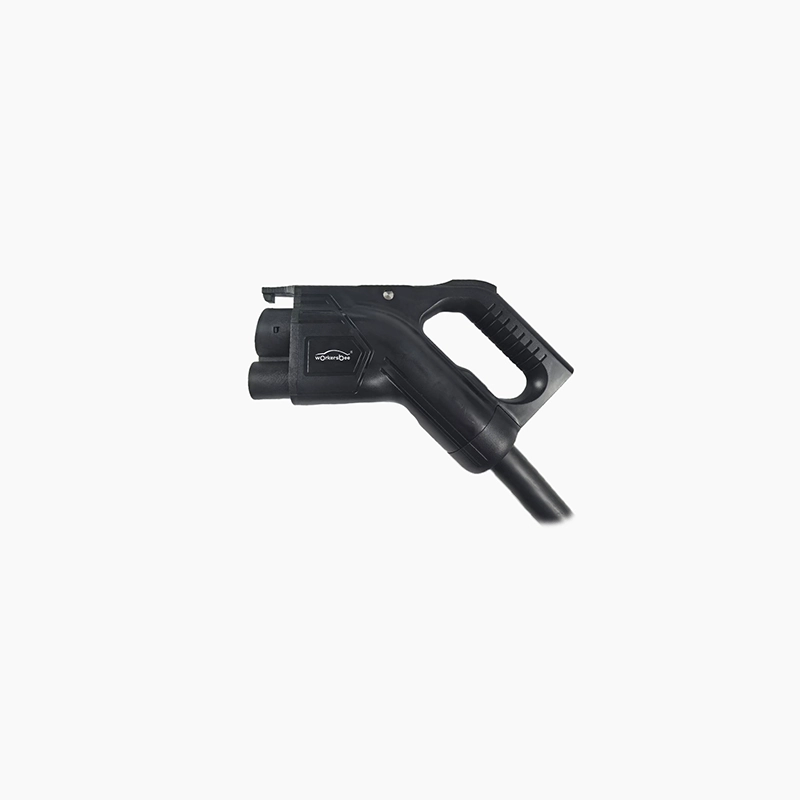

A CCS1 DC charging connector rated at 400A and 1000V DC for high-current fast charging applications. It is designed for charger systems that use a naturally cooled cable structure and supports temperature monitoring, outdoor protection, and project-based cable assembly customization.
Model No. :
WB-SC-DC1.0-380A/400ACertificates & Reports :
CSA certification in progressRated Current :
400A
ergonomic design and comfortable grip type 2 ac ev plug
compliant with IEC 62196 standards fast charging with excellent protection perfromance.
Up to 700A output currentoil-cooled or water-cooled
With an ergonomic design, the product fits human hand and is comfortable to hold.
Naturally cooled CCS2 handle for high-throughput DC fast charging. Up to 375A at 1000V with ≤50K terminal temperature rise, IP55 housing, and 10,000+ mating cycles.
Workersbee liquid-cooled CCS2 DC connectors are available in 300A, 400A, and 500A configurations for high-power EV charging projects.
The NACS AC Charging Plug by Workersbee offers reliable home and workplace EV charging with a durable design, supporting up to 48A of AC power. It is lightweight, easy to use, and compatible with Tesla and other EVs.
The NACS DC Charging Connector by Workersbee delivers high-power fast charging up to 350A and 1000V for electric vehicles. Designed for public charging stations, it offers durability, safety, and reliable performance with silver-plated contacts and smart temperature control.
A 400A CCS2 vehicle connector designed for high-current DC charging. This naturally cooled model is suitable for public DC charging stations, commercial charging equipment, and other projects that need 400A-class output with a simpler cable system and lower integration complexity.
SAE J1772 standards good grasp feel type 1 ev plug
SAE J1772 standards CCS1 EV DC charging plug
The EV plug's modular design is integrated seamlessly with automated oatch manufacturing technology
A CCS1 DC charging connector rated at 400A and 1000V DC for high-current fast charging applications. It is designed for charger systems that use a naturally cooled cable structure and supports temperature monitoring, outdoor protection, and project-based cable assembly customization.
terminal coating modular design cost effective gb ac ev plug
High-power GB/T 20234 DC plug for public fast chargers. 1000 V, 80–300 A natural-cooled design with silver-plated contacts, IP55 when mated, 10,000+ mating cycles, motor lock with emergency release, built for -30°C to +50°C operation.
Low resistance terminal and riveting design, economical, safe and durable

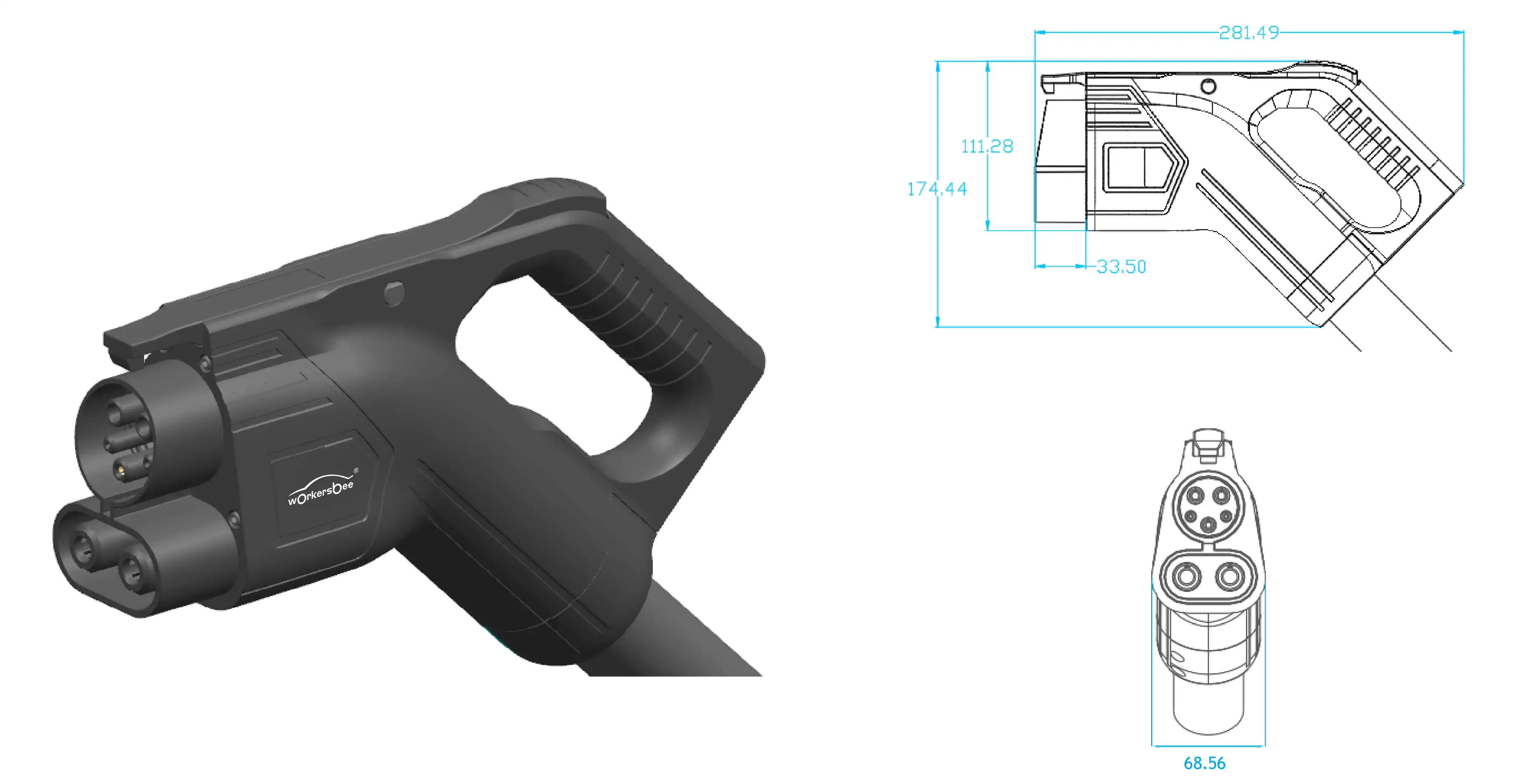

The Workersbee CCS1 400A DC charging connector is designed for DC charging systems that require a naturally cooled high-current connector. It follows the SAE J1772 interface standard and is intended for electric vehicles using the CCS1 charging interface.
The connector is rated at 400A and 1000V DC. Key parameters include insulation resistance above 500MΩ, withstand voltage of 3000V, insertion and withdrawal force below 100N, and a mechanical life above 20,000 no-load cycles. The flammability rating is UL94 V-0.
For outdoor and commercial charging environments, the connector is specified to IP55 and supports an operating ambient temperature range from -40℃ to 50℃. The product also supports temperature monitoring, which must be enabled in use according to the specification.
The 400A version supports project-based customization of cable length, stripping length, lug type, and sensor type. Available sensor options include PT1000 and NTC, depending on charger-side integration requirements.
